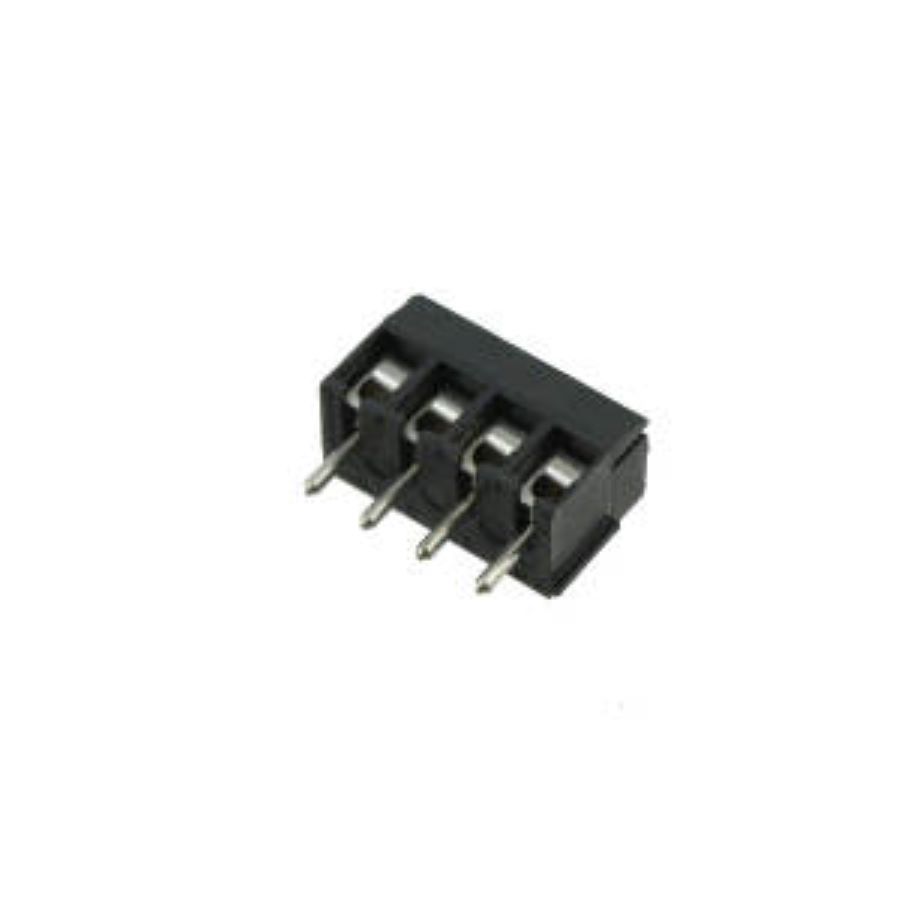

OSTTE040104
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTTE040104
Datasheet:
Description:
Terminal Blocks Through Hole 4 3.5 mm 10 A 125 V 26 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 4 |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Voltage | 125 V |
| Contact Plating | Tin |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Color | Black |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Steel |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 16 AWG |
Stock: 2419
Distributors
pcbx
pcbxUnit Price$0.61283
Ext.Price$0.61283
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61283 | $0.61283 |
| 10 | $0.45175 | $4.51750 |
| 25 | $0.39318 | $9.82950 |
| 50 | $0.35464 | $17.73200 |
| 100 | $0.32116 | $32.11600 |
| 300 | $0.29080 | $87.24000 |
| 500 | $0.26330 | $131.65000 |
| 1000 | $0.24580 | $245.80000 |
| 3000 | $0.23143 | $694.29000 |
| 5000 | $0.21790 | $1089.50000 |
